outdoor floodlights for sport field lighting
sport field lighting
Compared with the low energy efficiency and short life of metal halide floodlights and the low color rendering index of high-pressure sodium lamps, LED outdoor floodlights have high advantages. LED outdoor floodlights are energy-saving and can provide bright and uniform lighting for sports fields illumination. They also have a long lifespan and are low maintenance.
When selecting outdoor floodlights for sport field lighting, consider factors such as the size of the field, the level of competition taking place, and any specific lighting requirements for the sport being played. It’s also important to ensure that the lighting meets safety standards and does not cause glare or other visual distractions for players.
Series Primo LED outdoor floodlights
Primo series LED outdoor floodlights adopt high-end LED chips and LED drivers, and coupled with a good heat dissipation design, the service life of Zoom floodlights can reach more than 100,000 hours. The tool-free opening design facilitates maintenance and upgrade of the floodlight in the future. The overall lamp efficiency reaches 170lm/w and has obtained the ENEC certification of the TUV laboratory. There are four specifications and models to choose from, and customers can choose the size and power of the lamps according to their own needs.
- Watts: 20-400w
- Light Efficiency up to 170lm/w
- Protection class I or II
- Toolless buckle design, easy maintenance
- IP66&IK10
- Die-casting housing and Tempered glass
- Wide choice of optics, 25,30,60,90,120° or Asymmetry
- Equip with vent to avoid internal fogging and frosting
- ENEC, CE, CB, ROHS certified.
- Smart Control: 1-10V dimming, DALI control, Photocell, Motion sensor
Higher Efficacy
Produces up to 170lm/watt and has the most efficient light output of any top-level LED design available today.
tool-free opening design
The tool-free opening design facilitates maintenance and upgrade of the floodlight in the future.
Adjustable bracket
The mounting bracket can be adjusted by degrees, to meet the different irradiation angles of the flood lamp.
Extensive Adapters
A variety of adapters are available for you to install lamps in different environments.
Product Parameters
| Series No | Series Zoom |
| Power | 20W,30W, 50W,60W,80W, 100W,120W,150W, 180W,200W,240W,320W,400W |
| Efficacy | 140-170lm/W |
| Input Voltage | 100-240/277 VAC, 50 / 60 Hz |
| Power Factor | >0.95 |
| Surge Protection | 10KV (Build-in Driver) /Extra 10KV SPD (order on request except XL version) |
| IP Rating | IP66 |
| IK Rating | IK10 |
| CCT | 3000K, 4000K, 5000K, 5700K |
| CRI | Ra>70 (Default) / Ra>80 |
| Operating Temperature | -40°C to + 50°C |
| Beam Angle | 25°, 60°, 90°, 120° or Asymmetrical |
| Mounting Option | bracket mounted |
| Warranty | 5 Years |
| Certification | ENEC, CE, CB, ROHS, LM79, LM80, LM82, LM84, TM-21, ISTMT, IEC62471/62788 |
| Control | Photocell, DALI Dimmable, Motion Sensor, Non-Dimmable, 1-10V Dimmable, Zigbee or Lora Control |
Why Choose Outdoor Floodlights From ZGSM Lighting?
Each of our leaders in R&D dept, quality dept, production dept, and sales dept has more than 12-20 year-experience in LED lighting Fifield, who can provide effective LED lighting solutions quickly and professionally.
Cost-Effective Products: We have always been committed to the pursuit of the best ratio of quality and price, to provide customers with the most cost-effective products.
Products Certificate: ZGSM has passed ISO9001, ISO14001, ISO45001, and ISO50001 international quality and environmental management system certificates. And most of the products have passed certificates of CE, UL, RoHS, CB, ENEC, SAA, DLC, etc. by TUV SUD.
Fast Delivery: Our regular delivery time is generally within 3 days for samples and 2-3 weeks for bulk orders.
Private custom outdoor floodlights to meet your individual requirements
If you have questions about outdoor floodlights parameters or hesitate to choose the product, please contact us, our professional sales staff and technical team will help you solve the problem. We also provide customized service, you have any requirements for products, we will do our best to meet, and guarantee after-sales. ZGSM is a professional LED outdoor lighting manufacturer, with nearly 20 years of experience and quality worthy of your trust.
Series Zoom Outdoor Floodlights Application

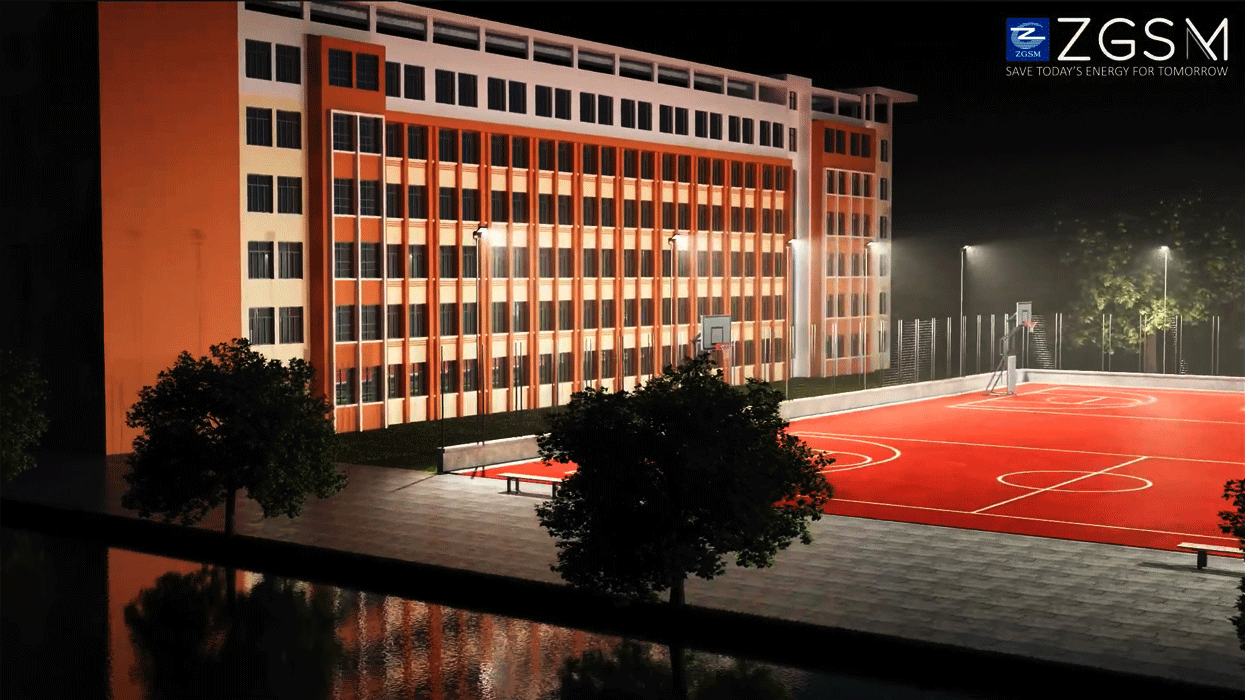

Outdoor floodlights are commonly used to light up sports facilities such as football fields, basketball courts, and tennis courts, allowing individuals to play and train at night.
Application Scenario
- Garden, path
- Billboard lighting
- Area lighting
- Parking lots
- Outdoor sports
