Dusk To Dawn Outdoor Street Light With Photocell Sensor

Dusk To Dawn Outdoor Street Light With Photocell Sensor

ENEC Certified

Series Kmini2 outdoor street light is a high-power version of Kmini. It was designed to meet the demands for street lights with larger power and good price.

Series Kmini2 LED street light is full certified by TUV, including CE-EMC, CE-LVD, RoHS, ENEC, CB, IP66 & IK10. It meets all requirements of projects in most countries. With salty spray test report, it’s no problem to be used in lighting projects near the sea.


Series Kmini2 LED Light Street Light

Series Kmini2 is a high-performance and cost-effective LED outdoor street light. With high efficacy up to 163lm/W, series Kmini2 50W LED street light is available to replace a 120~150W old HPS lamp.The buckle and driver box bottom opening design makes it available to open without any tools, easier for installation and maintenance. It’s one of our best-selling LED light street lights.

  • Watts: 60-150W
  • Smart body design, easy for delivery
  • Light Efficiency up to 163lm/w
  • Protection class I or II.
  • 10 /20KV surge protection, IP66 and IK10

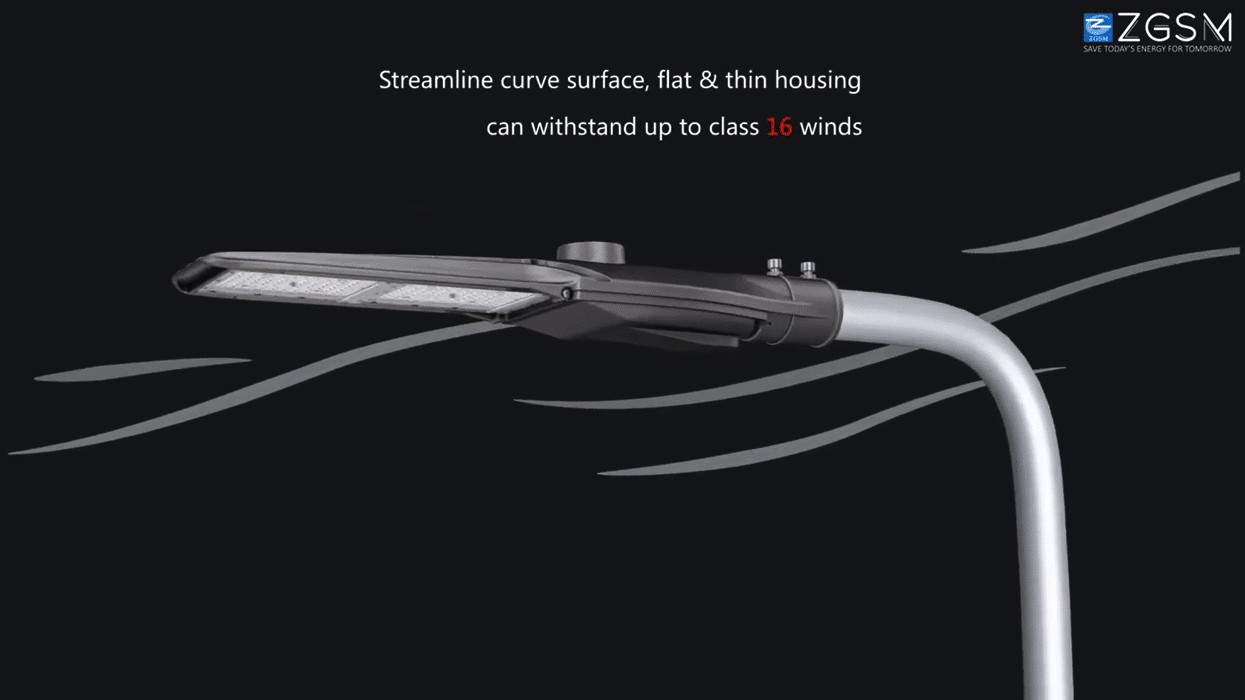

  • Smooth lamp housing, self-cleaning by rain
  • High Effciency and competitive price
  • ENEC, CE, CB, RoHS certified.
  • Smart Control: 1-10V dimming, DALI control, Photocell, Motion sensor, NEMA/Zhaga, Zigbee /Lora socket for smart control system or future updating
  • Street Lighting Design Guide

Tool-Free Buckle Design

The buckle and driver box bottom opening design makes it available to open without any tools, easier for installation and maintenance.

Multiple Sensors Available

Motion sensor or photocell are available to be equipped to Kmini2 street light to make it work more intelligently and save more energy.

Higher IP&IK Rating

The IP66&IK10 rating design ensures Kmini2 series outdoor street lights perfect for outdoor lighting, no need to worry about rain or wind.

Extensive Adapters

Various adapters optional, enables Kmini2 series outdoor street light to support different installation methods and application needs of customers.

Product Parameters

Series No Series Kmini2
Power 60W, 70W, 80W, 90W, 100W, 110W, 120W, 130W, 150W
Efficacy 135-163lm/W
Input Voltage 100-240/277 VAC, 50 / 60 Hz
Power Factor >0.95
Surge Protection 10KV (Default) / 20KV (available on request)
IP Rating IP66
IK Rating IK10
CCT 3000K, 4000K, 5000K, 5700K
CRI Ra>70 (Default) / Ra>80
Operating Temperature -40°C to + 50°C
Beam Angle Type I, Medium; Type II, Medium; Type III, Medium; Type V, Short;
Mounting Option Side entry mounted
Warranty 5 Years
Certification ENEC, CE, CB, ROHS, LM79, LM80, LM82, LM84, TM-21, ISTMT, IEC62471/62788
Control Photocell, DALI Dimmable, NEMA /Zhaga Socket, Motion Sensor, Non-Dimmable, 1-10V Dimmable, Zigbee or LORA control

Why Choose City Street Light From ZGSM Lighting?

Each of our leaders in R&D dept, quality dept, production dept, and sales dept has more than 12-20 year-experience in LED lighting Fifield, who can provide effective LED lighting solutions quickly and professionally.

Cost-Effective Products: We have always been committed to the pursuit of the best ratio of quality and price, to provide customers with the most cost-effective products.

Products Certificate: ZGSM has passed ISO9001, ISO14001, ISO45001, and ISO50001 international quality and environmental management system certificates. And most of the products have passed certificates of CE, UL, RoHS, CB, ENEC, SAA, DLC, etc. by TUV SUD.

Fast Delivery: Our regular delivery time is generally within 3 days for samples and 2-3 weeks for bulk orders.


Customize Outdoor Street Light To Meet Your Specific Needs

Product customization is one of our unique competitive advantages. We support customizing power, color temperature, beam angle, control/dimming type, finish , package and other parameters to help you get a product that is perfectly right for your specific application. We tailor each requirement to your unique case for a very seamless, hassle-free and enjoyable experience.

Don’t know which product and solution to choose? Don’t worry. Just tell us your requirements, and ZGSM’s professional team will provide you with the most professional and suitable lighting proposals.


Series Kmini2 Outdoor Street Light Application

Series Kmini2 Outdoor Street Light Application

Series Kmini2 LED light street light with multiple dimming functions and control types optional are suitable for outdoor street lighting. It has passes IP66 & IK10 test and no problem for changeable weather. All these advantages support Kmini2 to be a first-class choice for a wide range of outdoor lighting solutions.

Application Scenario

  • Main Roads/Public Roads
  • Highways
  • Gardens/Parks
  • Parking Lots
  • Squares
  • Bridges
