tool free smart street lighting

Intelligent control

Smart street lighting is an intelligent lighting system that uses sensors, communication equipment, energy management software, and other advanced technologies to regulate and manage street lamps. These systems typically use LED lights, which are more energy efficient and longer lasting than traditional lighting technology. The intelligent street lamp can be controlled remotely, allowing operators to adjust brightness levels, monitor performance and usage, and detect faults or malfunctions.

The technology is designed to save energy, reduce maintenance costs and enhance public safety by providing better street and sidewalk visibility. In addition, it can be combined with other smart city technologies such as traffic management systems, environmental sensors, and security cameras to create a more comprehensive and interconnected urban infrastructure.

CONTACT US DOWNLOAD CATALOG

Customize smart street lighting To Meet Your Specific Needs

With the development of society, people have higher and higher requirements for lighting, and smart street lighting gradually appears in the public vision. The application of an intelligent control system not only saves electricity but also reduces manual maintenance costs through remote control. H EVO series intelligent street lamp has a number of intelligent control accessories to choose from but also has ENEC, CE, CB, RoHS, TM21, ISTMT, LM79, LM82, LM84, IEC62722, IEC62717 and other tender requirements of the certificate, to meet the needs of most customers.

Series H EVO smart street lighting With Intelligent control

H EVO series smart street lighting follow the classic modular design of ZGSM, and on the basis of the previous edition of tool-free open design, in terms of future lamp maintenance. The cavity also has knife switch, horizontal bubbles, surge protectors, and added vents, small details that make this product more suitable for municipal engineering projects. And has obtained a number of test certificates and certifications, in the bidding project and lighting project hot products.

tool free smart street lighting
  • Wide wattage range from 40W to 300W
  • Tool-free with modular design
  • Light Efficiency up to 165lm/w
  • Standard class I, Class II is optional.
  • 10 /20KV surge protection, IP66&IK10
  • Wide choice of optics for different applications
  • Vertical and horizontal installation with ±15°in both directions
  • With majority certificates like ENEC, CB, LM79, and TM21
  • Smart Control: 1-10V dimming, DALI control, Photocell, Motion sensor, Timer, Zigbee /Lora socket for smart control system or future updating

Innovative Modular Design

Modular design provides excellent heat dissipation performance and easy maintenance.

Smart Control

A variety of smart accessories are available to realize intelligent control of lamps and lanterns.

Toolless Open Clip

Toolless open design, convenient installation, and maintenance of load lamps.

Extensive Adapters

A variety of adapters are available for you to install lamps in different environments.

Product Parameters

Series No Series H EVO
Power 40W, 50W, 60W, 80W, 100W,120W, 150W, 160W, 180W, 200W, 240W, 300W
Efficacy 125-165lm/W
Input Voltage 100-240/277 VAC, 50 / 60 Hz
Power Factor >0.95
Surge Protection 10KV (Default) / 20KV (available on request)
IP Rating IP66
IK Rating IK10
CCT 3000K, 4000K, 5000K, 5700K
CRI Ra>70 (Default) / Ra>80
Operating Temperature -40°C to + 50°C
Beam Angle Type I, Medium; Type II, Medium; Type III, Medium; Type V, Short;
Mounting Option Side entry or Vertical pole mounted
Warranty 5 Years
Certification ENEC, CE, CB, ROHS, SAA, UL, LM79, LM80, LM82, LM84, TM-21, ISTMT, IEC62471/62788
Control Photocell, DALI Dimmable, Zhaga Socket, Motion Sensor, Non-Dimmable, 1-10V Dimmable, Zigbee or LORA control
GET A FREE QUOTE DOWNLOAD CATALOG

Why Choose smart street lighting From ZGSM Lighting?

Each of our leaders in R&D dept, quality dept, production dept, and sales dept has more than 12-20 year-experience in LED lighting field, who can provide effective LED lighting solutions quickly and professionally.

Cost-Effective Products: We have always been committed to the pursuit of the best ratio of quality and price, to provide customers with the most cost-effective products.

Products Certificate: ZGSM has passed ISO9001, ISO14001, ISO45001, and ISO50001 international quality and environmental management system certificates. And most of the products have passed certificates of CE, UL, RoHS, CB, ENEC, SAA, DLC, etc. by TUV SUD.

Fast Delivery: Our regular delivery time is generally within 3 days for samples and 2-3 weeks for bulk orders.

Certification Exhibition

As a reputable manufacturer of LED street light luminaires, we take pride in our products’ extensive certifications and test reports. Our street luminaires have obtained prestigious certifications such as ENEC, CE, CB, ROHS, IEC62471, LM80, LM79, and more. These certifications serve as a testament to the exceptional quality, safety, and performance of our luminaires. With our certified LED street light luminaires, you can trust in their reliability, energy efficiency, and compliance with international standards. Illuminate your streets with confidence and choose our certified luminaires for superior lighting solutions.

ENEC by TUV

U6 078142 0096

CE by TUV

N8A 078142 0097

CB by TUV

SG PSB-LE-04609

UL

UL

SAA

SAA

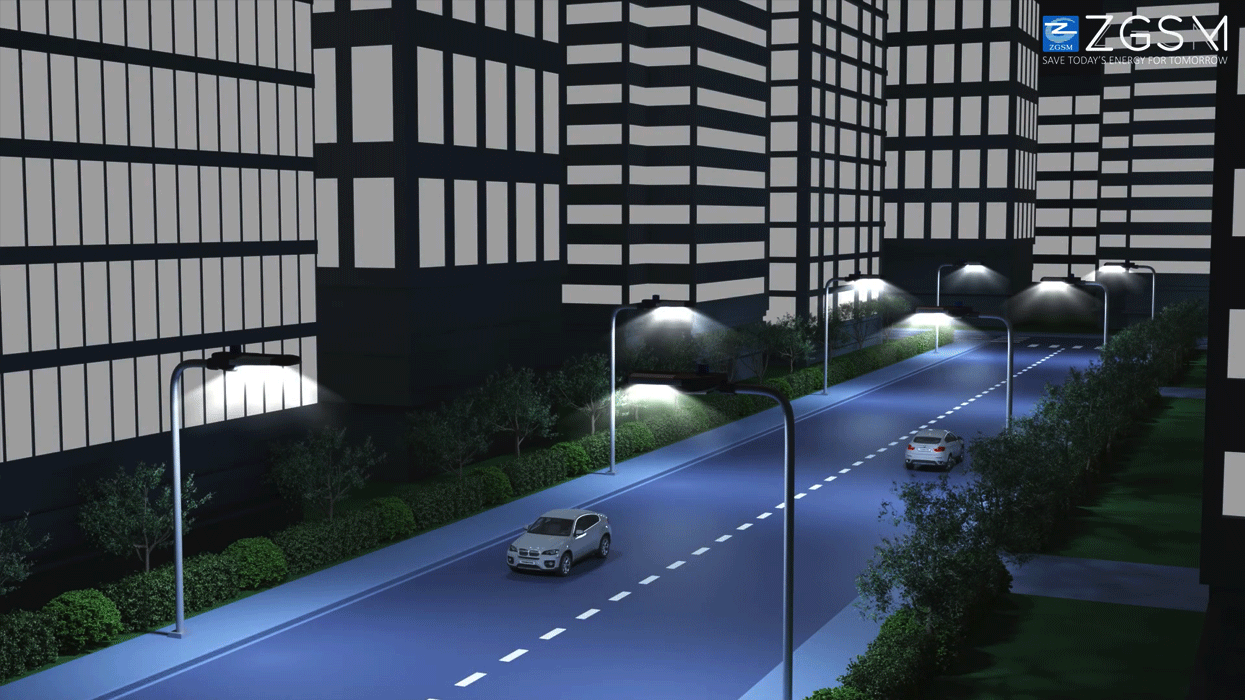

Series H EVO smart street lighting Application

Series H EVO smart street lighting Application

smart street lighting is suitable for installation in all kinds of roads, parks, squares, campuses, and other outdoor environments, especially those places with insufficient lighting at night or more security problems. Intelligent street lamps can automatically control lighting intensity, time, and direction, which can improve the visibility and safety of pedestrians, vehicles, and objects, but also can save energy and reduce energy consumption, which has an important role in urbanization, green and intelligent.

Application Scenario

  • Garden, path
  • Billboard lighting
  • Area lighting
  • Parking lots
  • Outdoor sports

Project Case

More Project Case

More Applications

FAQ

Smart street lighting refers to a lighting system that utilizes advanced technologies such as sensors, wireless communication, and intelligent controls to optimize energy efficiency and enhance functionality in street lighting infrastructure.

Smart lighting systems use sensors to detect ambient light levels and motion, allowing the lights to automatically adjust brightness based on specific needs. This helps to conserve energy and reduce costs while ensuring appropriate lighting conditions.

Some key benefits of smart street lighting include energy savings, reduced maintenance costs, improved safety and security, enhanced sustainability, and the ability to remotely monitor and manage the lighting network.

Smart lighting systems can incorporate features such as adaptive lighting, which increases illumination levels in response to specific conditions or events, improving visibility and safety for pedestrians, cyclists, and drivers.

Yes, existing street lighting can often be retrofitted with smart technologies. This typically involves replacing traditional light fixtures with smart LED luminaires and installing controllers, sensors, and communication devices to enable remote monitoring and control.
