urban design catenary led streetlight

European design

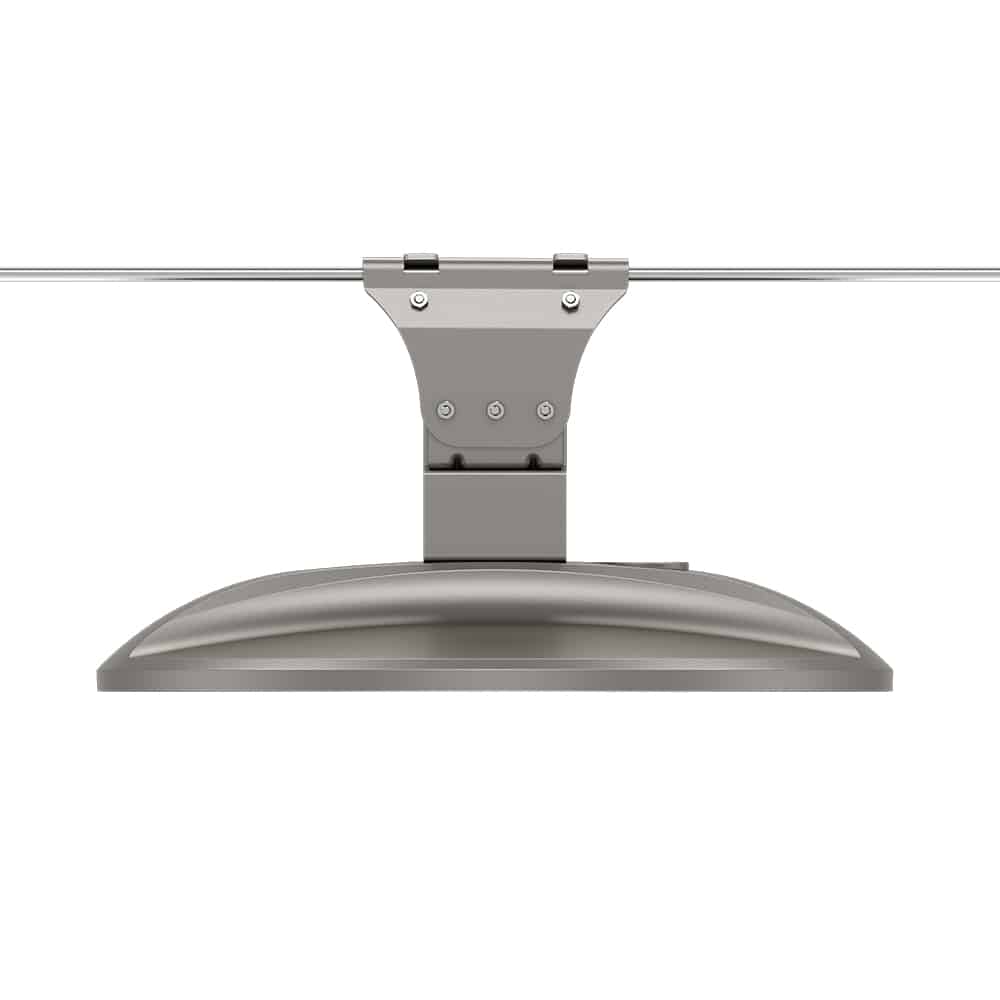

Catenary led streetlight to solve almost all applications of suspension technology street lighting systems. It is a modern advanced led contact line street lamp combined with efficient optics and innovative integration of wireless control systems.
Urban Design A catenary LED street light is a street light suspended from a cable or wire between two fixed points (usually a building or telephone pole). These streetlights are often designed to blend into the surrounding urban environment and use LED technology to provide efficient lighting. Catenary LED street lights are becoming increasingly popular in urban areas because they are energy efficient, aesthetically pleasing, and can be customized to meet the unique needs of a particular location.


Series Halo catenary led streetlight With Sensor

With replacement accessories, the Halo catenary led streetlight can be installed in six different mounting types, such as side entry, pole pendant, single arm post top, and double arm post top. Halo Series catenary LED street lamps provide powerful, economical, and reliable lighting. The whole body is made of die-cast aluminum. They are rated IP66 for durability and have an IK10 rating suitable for installation in demanding urban environments. Their design provides excellent heat dissipation and ensures high performance and reliability. Their luminescence properties reach 21000 lm, 170m/W. In addition, they have high surge protection of 10KV or optionally 20KV. And motion sensor can be integrated into the Halo series, enabling it to adjust its output by detecting the absence of vehicles and pedestrians. These features make it suitable for various applications such as parking lot lighting, park lighting, pedestrian lighting, commercial street lighting, or urban lighting.

catenary led streetlight
  • Power range 20W up to 150W
  • Super smooth body design
  • Full die-casting aluminum housing
  • Efficiency up to 170 lm / W
  • 10 /20KV surge protection, IP66&IK10
  • Supports multiple installation modes
  • Class I, and Class II are optional.
  • ENEC, CE, CB certified
  • Kinds of asymmetrical optical lens provide professional light distribution
  • Smart Control: 1-10V/ DALI dimming, NEMA, Zhaga, Photocell, Motion sensor, NEMA and Zhaga for future updating, Zigbee /LoRa controller for wireless controlling

different mounting types

Installed in six different mounting types, such as side entry, pole pendant, single arm post top, and double arm post top.

Multiple Control Types

A variety of smart accessories are available to realize intelligent control of lamps and lanterns.

Higher IP&IK Rating

High protection level makes the use of lamps more safe and more reliable, protecting the normal use of lamps.

Extensive Adapters

10KV (Default) /20KV(available on request) with IEC61643-11, to provide good surge protection for lamps.

Product Parameters

Series No Series Halo
Power Factor 30W, 50W, 80W, 100W,120W, 150W
Efficacy 135-170lm/W
Input Voltage 100-240/277 VAC, 50 / 60 Hz
Power Factor >0.95
Surge Protection 10KV (Default) / 20KV (available on request)
IP Rating IP66
IK Rating IK10
CCT 3000K, 4000K, 5000K, 5700K
CRI Ra>70 (Default) / Ra>80
Operating Temperature -40°C to + 50°C
Beam Angle Type II; Type III;
Mounting Option Post Top(Single arm or Double arm), Side Entry, pole Pendant, Wire Suspension, High Bay Mounted
Warranty 5 Years
Certification ENEC, CE, CB, ROHS, LM79, LM80, LM82, LM84, TM-21, ISTMT, IEC62471/62788
Control Photocell, DALI Dimmable, NEMA /Zhaga Socket, Motion Sensor, Non-Dimmable, 1-10V Dimmable, Zigbee or LORA control

Why Choose led streetlight From ZGSM Lighting?

Each of our leaders in R&D dept, quality dept, production dept, and sales dept has more than 12-20 year-experience in LED lighting field, who can provide effective LED lighting solutions quickly and professionally.

Cost-Effective Products: We have always been committed to the pursuit of the best ratio of quality and price, to provide customers with the most cost-effective products.

Products Certificate: ZGSM has passed ISO9001, ISO14001, ISO45001, and ISO50001 international quality and environmental management system certificates. And most of the products have passed certificates of CE, UL, RoHS, CB, ENEC, SAA, DLC, etc. by TUV SUD.

Fast Delivery: Our regular delivery time is generally within 3 days for samples and 2-3 weeks for bulk orders.

Certification Exhibition

As a reputable manufacturer of LED street light luminaires, we take pride in our products’ extensive certifications and test reports. Our street luminaires have obtained prestigious certifications such as ENEC, CE, CB, ROHS, IEC62471, LM80, LM79, and more. These certifications serve as a testament to the exceptional quality, safety, and performance of our luminaires. With our certified LED street light luminaires, you can trust in their reliability, energy efficiency, and compliance with international standards. Illuminate your streets with confidence and choose our certified luminaires for superior lighting solutions.


U6 078142 0096


N8A 078142 0097


SG PSB-LE-04609





Customize led streetlight To Meet Your Specific Needs

Catenary LED street lights are becoming increasingly popular in urban areas because they are energy efficient, aesthetically pleasing, and can be customized to meet the unique needs of a particular location. Because of the particularity of its installation, if you are not sure about the choice of the spectrum, you can contact us, for light efficiency, spectrum, power, and other problems, and we will give professional advice. Some accessories or electronic components can also be customized to meet personal needs.

Series Halo Catenary LED Streetlight Application

Series Halo Catenary LED Streetlight Application

Our Catenary LED Streetlight solution has been designed to offer freedom to narrow streets and pedestrianized areas where columns may be unsuitable, or, regaining public spaces is a priority.

Application Scenario

  • Main Roads/City Streets
  • highways
  • Parking Lots
  • Squares
  • Gardens
  • Bridges
  • Sidewalks

Project Case

More Project Case

More Applications


LED streetlights are lighting fixtures that use light-emitting diodes (LEDs) as the source of illumination. They are known for their energy efficiency, long lifespan, and improved visibility.

LED streetlights consume significantly less energy compared to traditional lighting technologies, such as high-pressure sodium (HPS) or metal halide lights. They convert a higher percentage of electricity into light, reducing energy waste.

LED streetlights offer numerous advantages, including energy efficiency, longer lifespan (up to 50,000 hours), better color rendering, instant-on capability, reduced maintenance costs, and the ability to dim or control the lights remotely.

Although LED streetlights have a higher upfront cost, their long lifespan and energy savings result in significant cost savings over time. The reduced maintenance and lower energy consumption contribute to their cost-effectiveness.

Yes, existing streetlights can be replaced with LED fixtures. Retrofitting involves removing the old lighting technology and installing LED luminaires, ensuring compatibility with the existing electrical infrastructure. This upgrade can yield substantial energy savings and improved lighting quality.

Build and Price Your Own Street Light Fixture Today!

Determining the cost of street light fixtures is a simple and transparent process. All we require from you are details about your application, project location, and project scale. By filling out the form below, our team of lighting experts will work diligently to design and construct street light fixtures that precisely meet your specific requirements.Get in touch with us today to receive a comprehensive system overview and lighting layout, meticulously tailored to your project’s specifications. At ZGSM, we have no minimum order quantity, and we are pleased to offer free samples of our high-quality street lights.
