Types and Applications of outdoor LED flood lights

Sally Liu

What are outdoor LED flood lights?

Outdoor LED flood lights are a term used to describe exterior lighting that is typically installed on buildings or utility poles to provide directional lighting to a variety of space types. LED outdoor floodlighting is a type of exterior lighting device manufactured using LED semiconductor technology and is used primarily for outdoor landscape and advertising light box lighting, building exterior lighting, and outdoor stadium lighting. The product converts electrical energy into light energy, and the light source uses LED chips to control the brightness and color of the light by controlling the current and voltage to achieve the lighting effect.

Types and Applications of Outdoor LED flood lights(Take ZGSM company’s LED floodlight as an example)

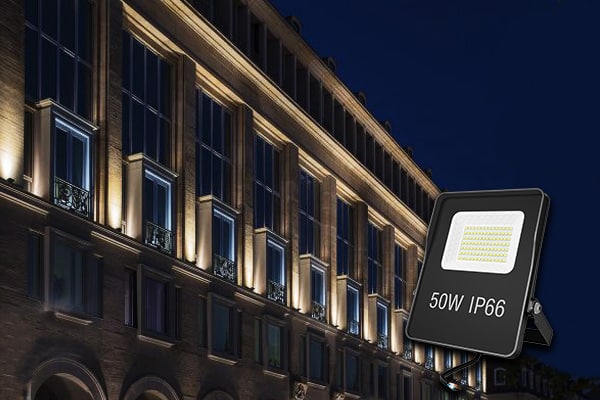

Driverless LED floodlights for landscape lighting

Driverless LED floodlight refers to a kind of LED floodlight that does not need a driver and power supply in the traditional sense. It uses direct drive technology that allows AC voltage to drive the LED chip directly without the need for a driver or transformer. Using this technology can reduce the cost and complexity of LED floodlight systems and improve their reliability and service life.

The LED floodlight uses direct drive technology, and the LED chip is directly powered by AC voltage without a driver. This can significantly reduce the cost and complexity of LED floodlight systems and improve their reliability and service life. In addition, the driving-free LED floodlight does not need to be as complicated as the wiring and installation process as the driving LED floodlight, and the installation and maintenance are convenient. With its simple design, high reliability, and low cost, it has become a popular choice for many outdoor lighting applications, such as landscape lighting, security lighting, and industrial lighting.

Series Stellar Driverless LED Floodlight
Series Stellar Driverless LED Floodlight

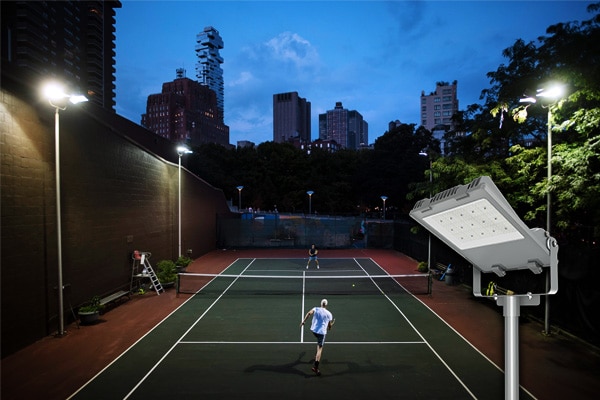

LED floodlights for outdoor area lighting

LED flood lights are an area lighting option for illuminating large areas. They are more energy efficient, longer lasting, and more adaptable than traditional lighting alternatives. LED floodlights produce extremely bright lighting, making them ideal for industrial lighting, commercial lighting, residential lighting, and outdoor lighting applications. The beam angle determines the area covered by the LED floodlight. Wide beam angles are ideal for large outdoor areas, while narrow beam angles are best for targeted lighting in specific areas, such as signs and entryways.

Series Zoom Outdoor LED Flood Lights
Series Zoom Outdoor LED Flood Lights

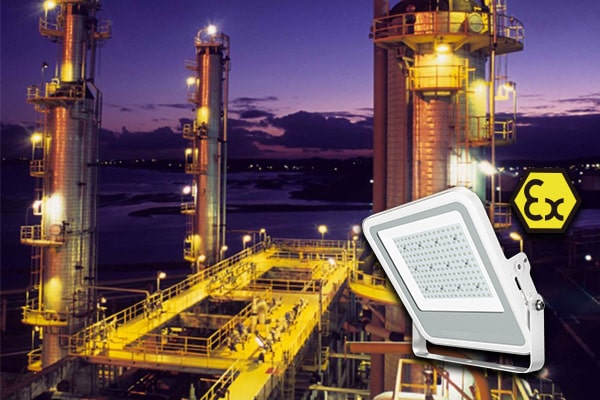

Explosion proof LED flood light for hazardous areas

Explosion proof LED floodlight is a kind of LED lamp that meet the requirements of explosion-proof and can be used safely in flammable and explosive gas environments. The shell and internal structure of the explosion-proof LED floodlight can effectively prevent dangerous factors such as sparks and high temperatures to ensure the safety of personnel and equipment.

Explosion-proof outdoor LED flood lights are widely used in petroleum, chemical, mining, and other industries in the open work sites and flammable and explosive gas environments of indoor and outdoor lighting, food processing, pharmaceutical and medical supplies, and other high-cleanliness requirements of the production environment, some special occasions, such as high temperature, wet, dusty environment lighting.

Explosion-proof LED floodlight has become the mainstream of modern industrial lighting equipment with their advantages of high efficiency, energy saving, environmental protection, and long life. Through the application of modern photoelectric technology, its color restoration degree and brightness have been well improved, which can meet the lighting needs and visual feelings of different environments.

Series Primo outdoor LED floodlight
Series Primo Explosion-proof LED flood light

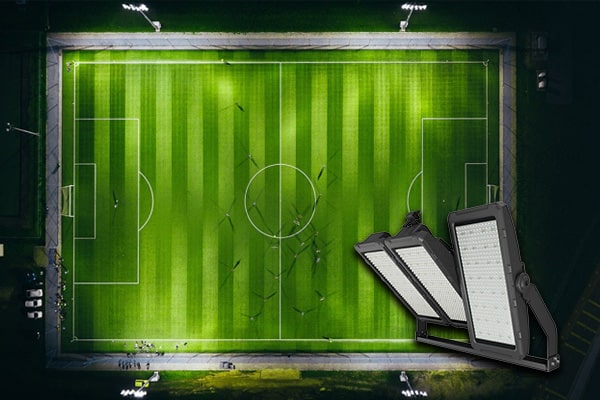

High-power LED stadium floodlights for outdoor sports venues

LED stadium floodlight is a modern lamp designed for outdoor stadiums, which has the characteristics of high brightness, high energy efficiency, energy saving, and environmental protection. It uses LED as a light source, replacing traditional mercury lamps, halogen lamps, and fluorescent lamps, etc., with shorter start-up time, longer life, and higher color reproduction. Its design also takes into account the particularity of the court, such as water, dust, wind resistance, and so on. The use of LED stadium floodlights can not only provide high-quality lighting effects for the stadium but also contribute to the sustainable development of the stadium and environmental protection.

LED stadium floodlights are suitable for various outdoor sports venues, such as football fields, basketball courts, tennis courts, golf courses, etc., and can also be used for outdoor concerts, wildlife observation, outdoor architectural lighting, etc. High mast light can provide suitable lighting, maintain stable lighting effects under different weather conditions, ensure personnel safety, and improve the aesthetics of buildings and the sustainability of the environment.

Series M LED stadium floodlight

ZGSM different types of Outdoor LED floodlights comparison

Type Driverless LED floodlight Outdoor LED floodlight Explosion proof LED flood light LED stadium floodlight
Power 10-50W 20-400W 80-150W 300-1200W
Input Voltage 220-240/277 VAC,
50 / 60 Hz
100-240/277 VAC,
50 / 60 Hz
100-240/277 VAC,
50 / 60 Hz
100-240/277 VAC,
50 / 60 Hz
Driver / Dimmable power supply Dimmable power supply Dimmable power supply
Application Billboards, Buildings,
Landscapes, etc
Square, Parking lot,
Mini court, etc
Gas station, Chemical plant,
Heavy industry plant, etc
Outdoor courts, Docks and
other large areas
Smart control
Price $3.1-8.9 $39-176 $59-79 $259-999

*Please contact us for the actual parameters and prices of Outdoor LED Flood Lights, the above are for reference only.

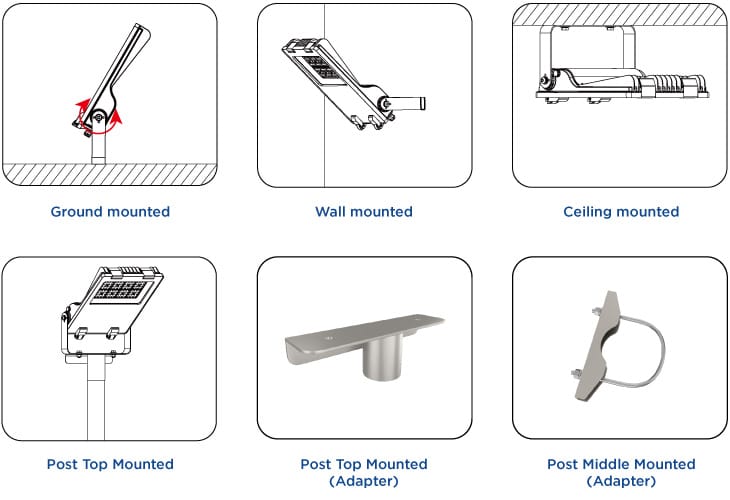

Installation and maintenance of outdoor LED floodlights

Installation and maintenance of outdoor LED flood lights

Bracket installation: The LED floodlight is installed on a fixed table or bracket. This installation method is suitable for building facades, outdoor landscapes, and other areas, and the installation is relatively firm and stable.
Light pole installation: The LED floodlight is installed on the light pole or electric pole. This method is suitable for plazas, parking lots, road edges, etc.

The installation and maintenance of outdoor LED floodlights need to pay attention to a number of aspects, period cleaning, fault inspection, waterproof protection, replacement of electronic components, and so on are very important links. Outdoor LED floodlight installation and maintenance is a very critical part of the lighting industry if reasonable installation and maintenance are to bring better lighting effects and user satisfaction and reduce the number of replacements, replacement, and cost.

The future development trend of outdoor LED flood lights

The realization of higher light efficiency: At present, outdoor LED flood lights have begun to achieve higher light efficiency. This benefits from the continuous improvement and innovation of LED technology, and through full spectrum lighting technology, LED floodlights can be more realistic to restore the color and texture of the object, while providing higher light efficiency while reducing energy consumption, which will be an important direction for the development of LED floodlights in the future.

Intelligent control: With the continuous development of smart cities and smart communities, LED floodlights will intelligently control many people’s home life, community lighting, transportation and public environment, and other fields. It can achieve remote control and automatic control through WiFi, ZigBee, LoRa, and other Internet of Things technologies, which are easy to use and manage.

Wider application: In the future, outdoor LED flood lights will be more widely used in urban planning and landscape lighting, commercial advertising lighting, highway street lights, building exterior wall lighting, sports lighting, and many other fields to meet people’s needs for lighting quality, energy saving and environmental protection, and lighting mechanisms. At the same time, innovations in the light source, material, and structure of outdoor LED flood lights will accelerate, making them more environmentally friendly, durable, easy to install and maintain, and have a variety of complex environments and needs.


LED floodlights use solid-state lighting technology to produce high-quality illumination at a low cost per watt, directing and projecting light onto specific areas or objects with a soft beam of light. Area lighting with LED floodlights is a fundamental part of indoor and outdoor lighting solutions.

1. Durable waterproof: Outdoor LED floodlight is made of high-quality materials, in the face of hot sunshine, cold winter, and continuous rainy season, still enough to ensure a service life of up to 5-10 years. It has an IP65 rating or higher, which effectively prevents water, dust, sand, and insects from entering the interior of the lamp, thus improving its stability and durability.

2. Easy to adjust brightness: Outdoor LED flood lights can easily adjust the brightness through remote control or APP so that they can adapt to different lighting needs. This allows them to play a greater advantage in different applications, such as night lighting and neon effects.

3. Environmental protection and energy saving: Compared with traditional fluorescent lamps, halogen lamps, and tungsten lamps, outdoor LED flood lights can emit more light with less energy, which makes them more economical in energy consumption. At the same time, the light source of the LED floodlight is composed of solid semiconductors, which can reduce the environmental impact in the process of manufacturing, use, and recycling, so it is more environmentally friendly.

Outdoor LED flood lights are popular lighting solutions for outdoor indoor spaces. They are commonly used in the following applications:

  1. Security lighting: LED floodlights are an excellent choice for security lighting as they provide bright, even illumination that can cover a large area. They can be used to light up entrances, parking lots, and other outdoor areas that require enhanced safety and security.
  2. Sports floodlights are the preferred lighting option for sports facilities as they provide high-intensity lighting that can cover large areas. Sports fields, tennis courts, and other outdoor sports venues are typically illuminated using LED floodlights.
  3. Landscape lighting: LED floodlights can be used to highlight landscaping features such as trees, sculptures, and water features. They can also be used to create dramatic lighting effects that enhance the overall aesthetic appeal of outdoor spaces.
  4. Commercial lighting: LED floodlights commonly warehouses, factories, and loading docks. They provide bright, versatile lighting that can help improve safety and productivity in these spaces.
  5. Residential lighting: LED floodlights are a popular choice for outdoor lighting in residential spaces. can be used to illuminate driveways outdoor living areas, and other outdoor spaces, providing improved safety and functionality.
